High-Temperature Water-Cooled Screw Chiller
100–300 RT • Cooling & Heating • Hot Water up to 185°F
EXINDA’s next-generation high-temperature water-cooled screw chillers deliver both cooling and high-temperature heating in a single VFD-driven platform. With hot-water outlet temperatures up to 185°F (85°C) and cooling capacities between 100–300 tons, these units are engineered for applications where conventional chillers cannot meet performance or temperature requirements.
Powered by an efficient screw compressor with real-time compression-ratio optimization, the system provides fast loading, quiet operation, and exceptional part-load efficiency, making it ideal for comfort cooling, process loads, and mission-critical facilities.

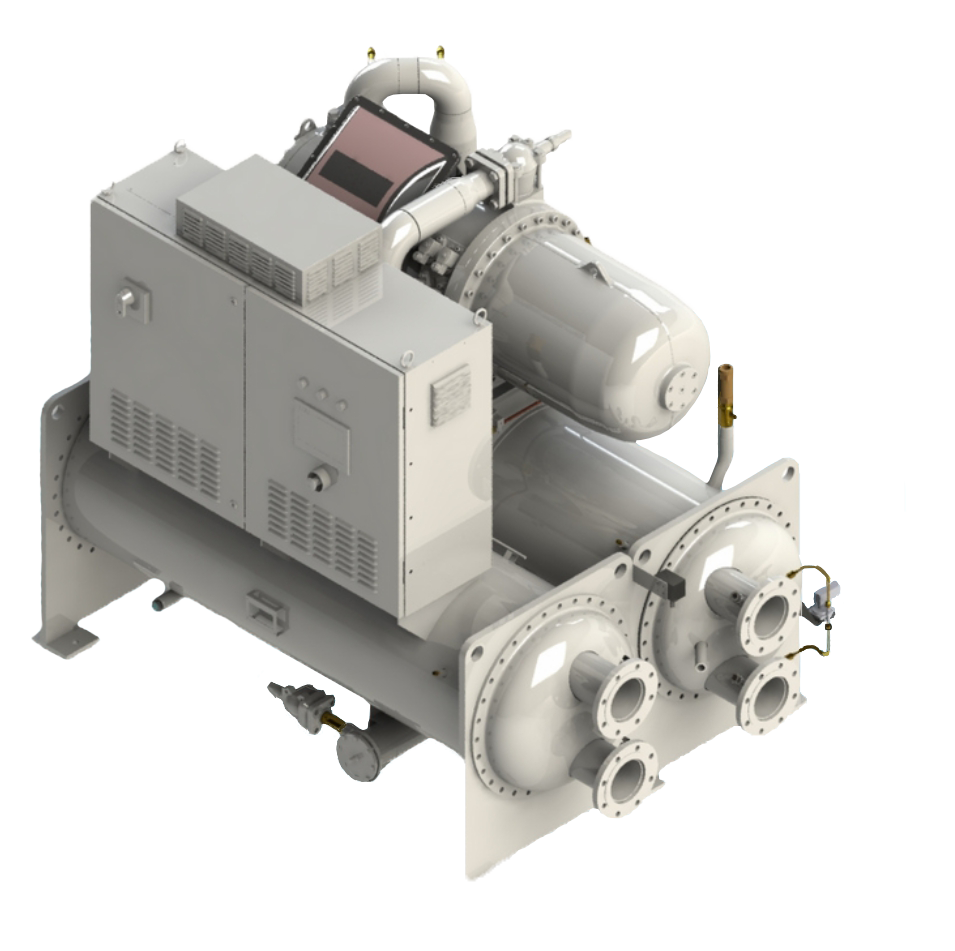

EXINDA High-Temperature Water-Cooled Screw Chiller
The EXINDA high-temperature water-cooled screw chiller is designed to deliver reliable cooling and high-temperature heating for industrial, commercial, and mission-critical applications. With a wide capacity range (100–300 tons) and hot-water production up to 185°F (85°C), this system supports air-conditioning, hydronic heating, domestic hot water, and process loads in a single integrated platform.
The fully VFD-driven screw compressor continuously optimizes compression ratios, ensuring excellent efficiency across all load conditions. The chiller maintains quiet, adaptive performance and includes fast-loading capability, allowing cooling or heating recovery within seconds after a power interruption.
Using R515B, a low-GWP next-generation refrigerant, EXINDA supports higher efficiency and sustainability targets while reducing environmental impact compared to traditional refrigerants.
01 — Dual-Mode Operation (Heating + Cooling)
Provides chilled-water cooling and high-temperature heating up to 185°F (85°C) in a single unit.
02 — High-Efficiency Screw Compressor
Real-time compression-ratio optimization enhances performance in all seasons and part-load conditions.
03 — Fast-Loading Capability
Cooling or heating recovers within seconds after a power outage — essential for mission-critical facilities.
04 — Quiet, Adaptive Operation
Low vibration and noise levels, ideal for comfort cooling and process-cooling environments.
05 — Water-Cooled Heat Exchangers
Shell-and-tube condenser and flooded evaporator deliver stable and efficient heat transfer.
06 — Advanced VFD-Driven Platform
Fully variable-frequency compressor start with 50%–100% stepless capacity control.
07 — R515B Low-GWP Refrigerant
Supports sustainable building strategies with reduced environmental impact.
08 — Siemens PLC Control System
7-inch LCD touchscreen with water-temperature PID control and full protection suite.
09 — Comprehensive Safety System
Includes high/low-pressure protection, over-current/over-temperature protection, freeze protection, and safety valve.
10 — Ideal for Complex Commercial Applications
Comfort cooling, domestic hot water, hydronic heating, process loads, and critical facilities.
Technical Performance
Performance — AHRI Conditions
● Cooling Capacity: 95.8 RT (337 kW)
● COP: 4.96
● IPLV.IP: 7.14
Heating Performance — AHRI Conditions
● Heating Capacity: 140.2 RT (493 kW)
● COP: 4.46
● Hot Water Outlet Temp: 140°F
Heating Performance — High Temperature
● Heating Capacity: 124.7 RT (438.4 kW)
● COP: 2.70
● Hot Water Outlet: 176°F
Electrical
● Power Supply: 3-phase, 440–480V, 60 Hz
● Rated Power: 68 kW
● Rated Current: 124 A
● Max Operating Current: 290 A
Compressor
● Type: Screw
● Quantity: 1
● Starting: Variable-frequency start
● Capacity Control: 50%–100% stepless
Condenser (Water-cooled, shell-and-tube)
● Inlet Water Temp: 85°F
● Outlet Water Temp: 94°F
● Chilled Water Flow: 52.1 m³/h
Evaporator (Flooded shell-and-tube)
● Inlet Water Temp: 54°F
● Outlet Water Temp: 44°F
● Cooling Water Flow: 68.4 m³/h
Refrigerant System
● Refrigerant Type: R515B
● Charge: 125 kg
● Expansion: Electronic expansion valve
● Circuits: 1
