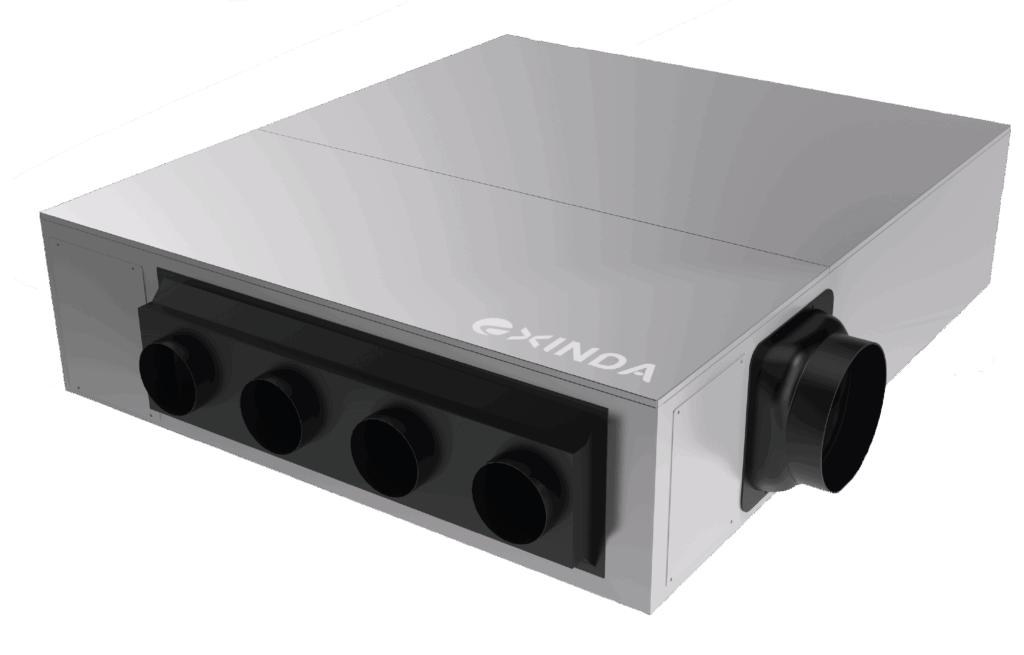

EXINDA AURA – Ceiling-Ducted All-in-One Heat Pump ERV
The EXINDA AURA is a compact, ceiling-mounted system that integrates heating, cooling, ventilation, dehumidification, and energy recovery into a single indoor unit — with no outdoor condenser required. Designed for homes, apartments, and light commercial spaces, it delivers year-round comfort, premium air quality, and ultra-low noise performance.
Engineered for nearly Zero Energy Buildings (nZEB), AURA continuously monitors temperature, humidity, and air quality, adjusting operation in real time for maximum efficiency.
EXINDA AURA – Ceiling-Ducted All-in-One Heat Pump ERV
The EXINDA AURA HPERV is a revolutionary ceiling-ducted system that combines heat pump technology and energy recovery ventilation into one ultra-compact indoor unit. It provides heating, cooling, fresh-air renewal, dehumidification, and air filtration — all without an outdoor unit.
Perfect for apartments, single-family homes, and light commercial spaces, the AURA Series is ideal where outdoor space is limited or where indoor air quality is a top priority.
With built-in dual heat recovery, the system captures and reuses energy from stale indoor air, reducing load on the compressor and lowering energy consumption.
Designed to simplify installation and building compliance, AURA eliminates the need for shared ductwork, rooftop condensers, fire dampers, smoke detection networks, or complex zoning. Each unit acts as a self-contained HVAC system for a single apartment, delivering quieter, cleaner, and more efficient operation.
01 — All-In-One HVAC System
Heating, cooling, ventilation, dehumidification, and energy recovery — all integrated into one indoor unit with no outdoor condenser.
02 — Ceiling-Mounted, Ultra-Slim Design
Only 11-1/8 inches in height, ideal for suspended ceilings and compact installations.
03 — High-Efficiency HPERV Performance
Cooling capacity: 12,500 Btu
Heating capacity: up to 23,365 Btu
COP up to 3.72
04 — Smart Ventilation & Dual Heat Recovery
Passive + thermodynamic heat recovery with efficiency up to 75% at 32°F (0°C).
05 — Fresh Air + Dehumidification
Continuously renews indoor air while removing excess humidity for healthier comfort.
06 — Free Cooling Mode
Uses cool outdoor air during mild seasons to reduce energy consumption.
07 — Independent Unit Per Apartment
No shared ductwork, no rooftop units, no fire dampers, no central smoke detection.
08 — MERV 13 Indoor Filtration
High-grade filtration captures 80% of 1-micron particles for cleaner indoor air.
09 — Horizontal DC Inverter Compressor
30%–100% modulation, vibration-free operation, and quiet performance: 48 dB(A) at 1 meter.
10 — Optional Electric Heater for Cold Climates
Ensures stable operation in temperatures below –10°C (14°F).
Technical Performance
Electrical:
● Voltage: 208–240V / 60Hz / 1Ph
● Power Supply: Hardwire only
● Electric heater: 2000 W
● MCA (with heater): 20 A
● MOP: 25 A
Performance — Heating:
● Heating capacity (47°F / 8°C): up to 23,365 Btu
● Heating capacity (23°F / -5°C): up to 21,865 Btu
● Heating capacity (5°F / -15°C): up to 16,565 Btu
● COP: 3.72 / 3.25 / 2.22
Performance — Cooling:
● Cooling capacity (95°F / 35°C): 12,500 Btu
● EER: 3.15
Airflow & Recovery:
● Airflow: 50–100 CFM
● Sensible heat recovery:
75% @ 32°F (0°C)
60% @ –13°F (–25°C)
● Total recovery at 95°F: 50%
Filtration:
● Indoor air: MERV 13
● Fresh air / Exhaust air: MERV 8 (washable)
● ePM1 80% filtration efficiency
Sound Levels:
● 48 dB(A) @ 1 meter
● 43 dB(A) @ 3 meters
Dimensions & Weight:
● Net dimensions: 44-11/16×39-3/16×11-1/8 in
● Net weight: 185 lb
● Gross weight: 205 lb
Components:
● Horizontal DC inverter compressor
● Hybrid recovery core
● ECM fans
● Electric controls
● High-efficiency coils
● Optional electric heater for extreme cold
